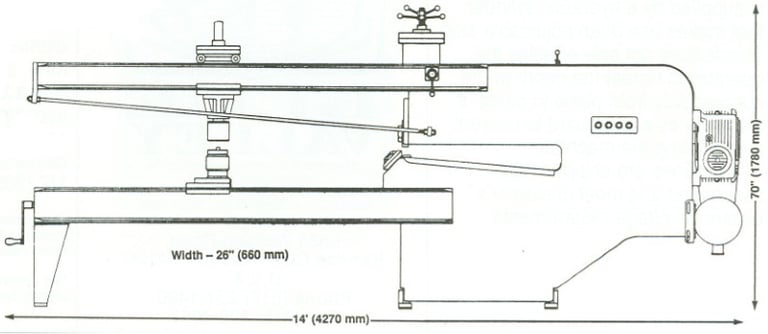

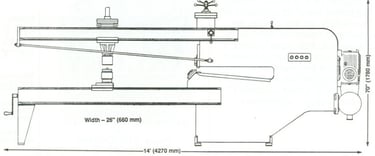

#65B Circle Shearing Machine

Specifications:

3/8" Capacity

10HP-Drive Motor

1 HP, 1 Gal-Hydraulic PowerUnit

Shipping Weight-5,500 Ibs.

*Machine ratings are in mild steel. When stainless steel or high strength alloys are used, machine capacities must be down-rated.

The #65B Circle Shearing Machine is derived from the Blue Valley model #65B Circle Shear design, used for cutting blanks for Flanging and Dishing Machines. Shearing circle blanks, rather than burning them, produces cleaner cuts without heating the material. Material that has been heated on the edge will harden unevenly and not bend and flange as consistently. This hardened edge also causes more wear to the tooling on Flangers, specifically the segment rolls, which will need replaced more frequently when flanging burned blanks. For the highest quality blanks, the #65B Circle Shear is your solution.

For more information, please contact us today! We recommend that you specify your requirements and let us help you select the right Hemisphere Flanging Machine for your working needs.
