#87b Flanging Machine

Specifications:

As standard equipment, for flat (flanged only style) and dished heads

*Options: Shear attachment

3/16" (4.75 mm) max. thickness

9' (3600 mm) max. major axis diameter

Max. major/minor ratio of 2:1

3/4" (19 mm) knuckle radii are the standard upper rolls supplied

10 HP, 20 gal. free-standing hydraulic power unit

Crated shipping weight—4,500 lbs.

*When using thinner material, it becomes difficult to achieve the larger corner radii and straight flange

*The largest dished head roll that can be supplied on machine is the standard dished head roll listed on specifications. Non-standard rolls can be supplied and are quoted individually.

*Machine ratings are in mild steel. When stainless steel or high strength alloys are used, machine capacities must be down-rated.

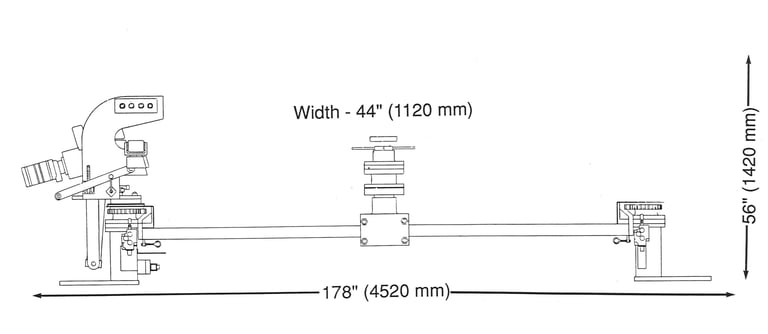

The #87b Elliptical Flanging Machine is derived from the Blue Valley model 87 Flanging Machine design, used primarily for truck and trailer tank heads. Flat heads and dished heads (9" maximum depth of dish) can be produced on the HE1, using the equipment that is standard on the machine. Reverse dished heads can be accommodated with additional center spacing. Central to the functionality of the #87b is its interchangeable upper roll, which plays a crucial role in determining the inside radius—also known as the knuckle radius—of the flange being produced.

For more information, please contact us today! We recommend that you specify your requirements and let us help you select the right Hemisphere Flanging Machine for your working needs.
